WideTEK 36ART 국내최초 신제품 출시

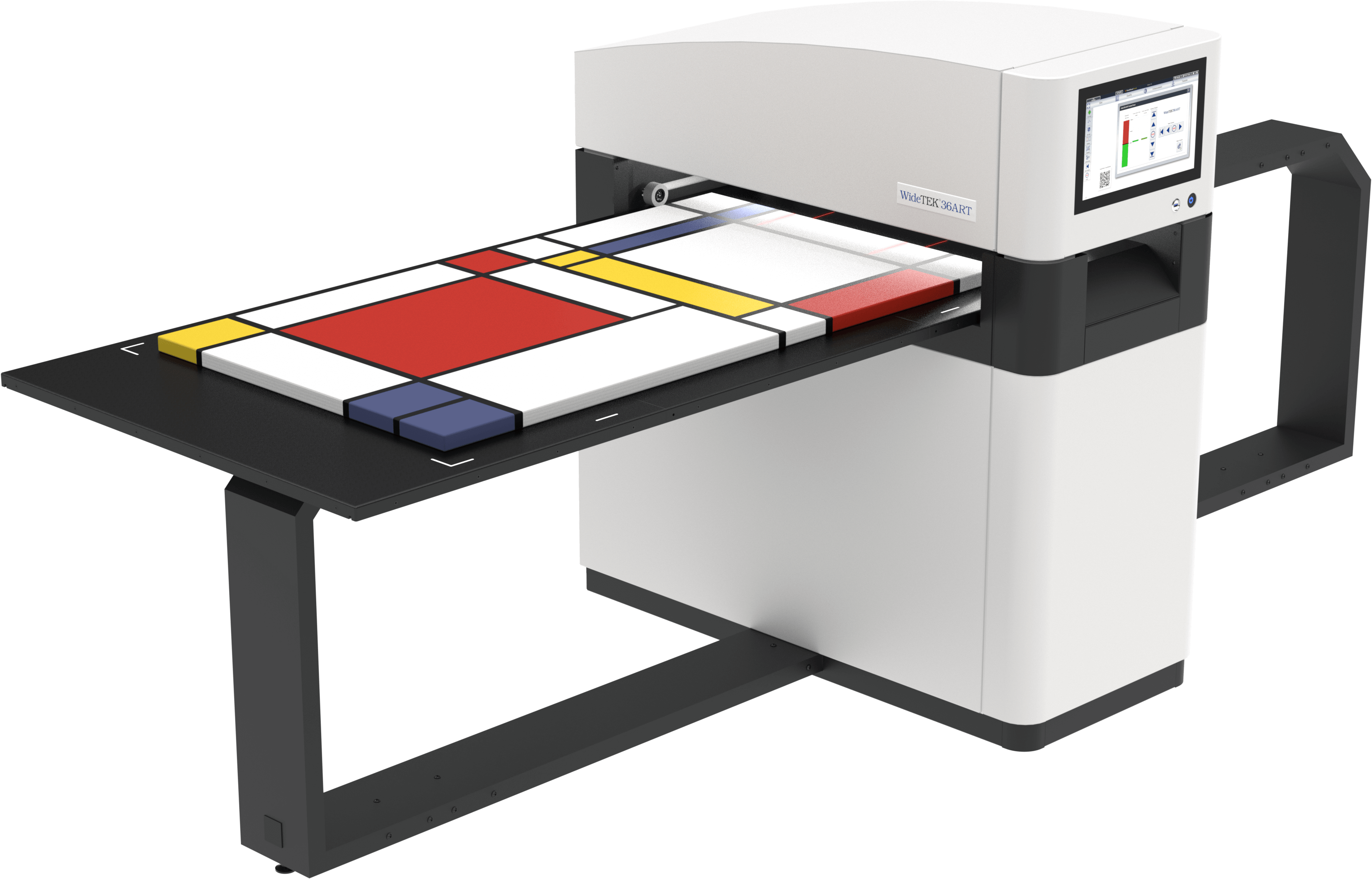

WideTEK® 36ART-600 wide format CCD art scanner

WideTEK 36 ART

WideTEK® 36 ART enables contact free scanning of works of art like oil and acrylic paintings, watercolors, charcoal and pastel drawings, mixed media collages and antique works of art; at 600dpi in formats up to 914 x 1524mm / 36 x 60 inches.

The new WideTEK® 36 ART-600 was designed for archiving and reproduction of works of art. Museums can digitize their own collection for sale as a print or for publication on the internet or in catalogs. Reprography specialists can offer fine art digitization as a service, which has already proven to be a lucrative market.

Original artwork is moved under the CCD camera elements completely contact free, protecting the art from any damage and making it possible to scan a painting that is still wet, as long as it is framed or the sides are dry enough to place the artwork on the scanning bed.

In cooperation with large format printers from HP, Canon and EPSON, the WideTEK® 36 ART-600 brings the basis for professional art reproduction. Native printer drivers installed on the scanner make color accuracy on the resulting image even higher.

Scan flat

Scan with light textureScan with light texture

Scan with strong texture

---

WideTEK® 36ART Functions & Features

Functions and features available on the WideTEK® 36ART wide format CCD art scanner.

WideTEK® 36ART Functions

• Scans art or other material 914 x 1524 mm / 36 x 60 inches wide
• Maximum scan height of 100 mm / 4 inches
• Document thickness of 200 mm / 8 inches (E.g. Canvas up to max. 100 mm in a frame up to 200 mm thickness)
• Fastest color scanning at 42.2 mm/s / 1.66 inch/s @ 300 dpi
• Fastest 3D texture color scanning at 21.1 mm/s / 0.83 inch/s @ 300dpi
• 600 x 600 dpi optical resolution
• On the fly rotation while scanning facilitates postprocessing
• Face up scanning (no more "blind"scanning)
• Real time display of scanned images, modify images without rescanning
• Standalone device with its own integrated PC
• Scan2USB -- Walk up Scanning to any USB device
• Scan2Print -- Copy to networked printers or hot folders
• Output formats: PDF, PDF/A, JPEG, TIFF, PNM, multipage PDF and TIFF, DICOM and many more
• Scan2Network -- Output to network resources, SMB, FTP

WideTEK® 36ART Features

• Contact-free scanning of fragile material or even wet artwork
• Scan table can be moved manually or motorized
• Dual LED lamps with integrated natural light diffusor, no warm up, IR/UV free
• Large 15 inch color touchscreen for simplified operation
• Single path texture scanning, patent pending stitching
• Motorized focus adjustment up to 4 inches
• User interface configurable in your language
• Virus resistant Linux OS
• OS independent, runs with Windows 7, 8, 10, Linux, Mac
• ScanWizard uses any browser: IE, Safari, Chrome, Firefox
• Integrated walk up scanning software
• Easy installation via Scan2Net® Technology
• Remote maintenance and troubleshooting
• Firmware updates via web interface
• Dust-free camera technology

---

WideTEK® 36ART Markets & Applications

The WideTEK® 36ART wide format CCD art scanner is a valuable production device for the following markets and applications. This list is neither complete nor exclusive, there are more markets and applications than listed and it should be taken only as a general guideline. If you have a specific application that is not listed here, please check with your sales representative.

WideTEK® 36ART Markets

• Museums, Galleries, Exhibitions
• Copy Services, Reprographics
• Government, Archives, Special Collections
• Universities, Libraries, Fine Art Owners
• Textile, Floor Cover and Building material industries

WideTEK® 36ART Applications

• High quality replica production of artwork for sale in museums, archives and auction houses
• Preservation of artwork as special collections in archives, museums, government agencies
• Presentation of artwork in public and/or private catalogs, prints, websites for sale or advertising purposes
• Industrial quality control of textured heavy, thick or wet material. Integration into existing QA workflows
• Presentation of other material in public and/or private catalogs, websites for sale or advertising purposes
• Scanning artwork for display as a security, anti-theft measure

WideTEK® 36ART Technical Data

This section provides you with the technical specifications and data associated with the WideTEK® 36DS wide format duplex scanner. Speed, scan size, power consumption and environmental data can be found as well as shipping dimensions and weight. These documents are the most detailed summary of the technical specifications.

Technical Data

DocumentMaximum Document SizeMaximum Scan HeightsDocument ThicknessAutoformat Size RecognitionDIN FormatANSI FormatUser Defined FormatOutputOptical ResolutionPixel DimensionScan Speed ColorScan Speed Color 3DColor DepthScan OutputFile FormatsAccuracyScan directionTransport directionTechnical SpecificationsComputerTouchscreenUSB PortInterfaceCameraLight SourceLamp Life TimeDimensionsDimensions Scanner(H x W x D)Weight ScannerWeight Scan tableElectrical SpecificationsElectrical ConnectionPower ConsumptionAmbient ConditionsOperating TempRel HumidityNoise

914 x 1524 mm (36 x 60 inches)

100 mm (4 inch)

200 mm (8 inch) E.g. Canvas up to max. 100 mm in a frame up to 200 mm thickness

yes

DIN A5 - DIN A0

Legal, US E

yes

600 x 600 dpi

9.3 x 9.3 µm

300 dpi - 42.2 mm/s (1.66 inch/s) 600 dpi - 21.1 mm/s (0.83 inch/s)

300 dpi - 21.1 mm/s (0.83 inch/s) 600 dpi - 10.7 mm/s (0.42 inch/s)

48 bit color, 16 bit grayscale

24 bit color, 8 bit color indexed, 8 bit grayscale, bitonal, enhanced halftone

Multipage PDF (PDF/A) and TIFF, JPEG, JPEG 2000, PNM, PNG, BMP, TIFF (Raw, G3, G4, LZW, JPEG), AutoCAD DWF, JBIG, DjVu, DICOM, PCX, Postscript, EPS, Raw data

± 0.08% across 36 inch scanning width

± 0.08%

64 bit Linux, Intel i3, quad core processor, 8 Gigabyte RAM, 320GB HDD for extra large jobs

15 inch color touchscreen

1 USB Port 3.0

1 GBit Fast Ethernet with TCP/IP based Scan2Net® interface

3x Tri-Color CCD, 67.500 pixels, encapsulated and dust-proof

Two lamps with white LEDs, integrated optical diffusor, no IR/UV radiation

50,000 h (typ.)

with runway: 1380 x 3275 x 1280 mm (54.3 x 128.9 x 50.4 inches) without runway: 1380 x 690 x 1280 mm (54.3 x 27.2 x 50.4 inches) Scan table: 1000 x 2100 mm (39.4 x 82.7 inches)

200 kg (440 lbs.)

22,5 kg (50 lbs.)

100-240 Vac, 47 - 63 Hz (external power supply, complies with ECO standard CEC level VI)

< 0.5 W (Sleep) / 5.2 W (Standby) / 50 W (Ready to scan) / 95 W (Scanning)

5 to 40 °C (40 to 105 °F)

20 to 80 % (non-condensing)

< 35 dB(A) (Scanning) / < 25 dB(A) (Standby)
